CCT15861 | Schneider Electric
Memory element, for IHP timers, IC twilight switches, for Acti 9, CCT15861
Unit Price (€ / pc.)
35.4144 € *
Available: 0 pcs.
Leadtime: 1 Week **

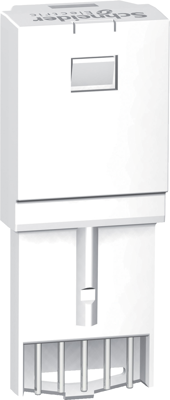

Storage element, CCT15861, Schneider Electric
Memory stick. Memory stick for saving and duplicating programs for time switches. The program created by the software is loaded to the memory chip and can then be imported to one or more time switches. For IHP+ 1c/2c, ICAstro 1c/2c, IC100kp+ 1c/2c, IHP 1c 18 mm, IHP+ 1c 18 mm. Ambient temperature: -30 °C to +55 °C. Transportation temperature: -30 °C to +70 °C. Storage temperature: -30 °C to +70 °C. Operating humidity: 90% RH, no condensing. Transportation humidity: 90% RH, no condensing. Storage humidity: 90% RH, no condensing. Weight: 2g. Dimension: 33 x 13 x 8 mm (Length x Width x Height).
Technical specifications
| Product type | memory element | |
| Version | for IHP timers, IC twilight switches | |
| Suitable for | Acti 9 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85234190 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | lead, 1,2-dimethoxyethane, 1,3-propane sultone |
| SVHC free | No |
| RoHS conform | not_relevant |
| Sustainable | Yes |
