A9A26959 | Schneider Electric
Undervoltage release, 115 VAC, (W) 18 mm, white, for circuit breaker, A9A26959
Unit Price (€ / pc.)
83.9664 € *
Standard delivery time from the manufacturer is: 1 Week

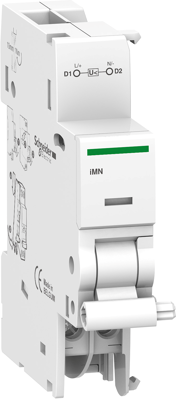

Voltage release, A9A26959, Schneider Electric
This Acti9 iMN electrical auxiliary is an instantaneous Voltage release. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. It prevents device closing again until its input voltage has been restored. The width in 9 mm pitches is 2. The Uc control circuit voltage is 115 VAC. It can be mounted on a DIN rail for modular installation. The product color is white (RAL9003). The operating temperature is -25 °C to + 50 °C. The storage temperature is -40 °C to + 85 °C. This product complies with IEC/EN 60947-5-1 standards.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | white | |
| Width | 18 mm | |
| Suitable for | circuit breaker | |
| Product type | undervoltage release | |
| Version | 115 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | BE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
