47295 | Schneider Electric

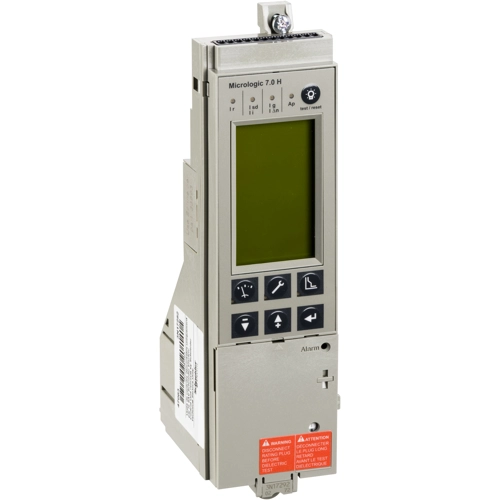

Trip unit, electronic, for circuit breaker, 47295
Micrologic, 47295, Schneider Electric
Micrologic 7.0H (Harmonics) is an electronic control unit used on Masterpact NT 06 to 16 and Masterpact NW 08 to 63 fixed circuit breakers. This control unit has a selective and earth - leakage protection (LSIV), and is designed to protect power circuits and loads. It embeds adjustable long time protection against overloads. It provides also adjustable short - time protection and instantaneous protection against short - circuits. Micrologic 7.0H offers an adjustable residual earth leakage protection. Micrologic 7.0H indicates overloads with an Alarm LED. It is able to display the trip cause through 3 others LEDs. Micrologic 7.0H is equipped with a digital LCD screen that displays power measurement and current/voltage harmonics. This control unit can be associated with fixed Masterpact NT and NW basic frame.
| Product type | trip unit | |
| Version | electronic | |
| Suitable for | circuit breaker |
| Country of origin | NL |
| Customs tariff number | 85389099 |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
