29470 | Schneider Electric
Interface and automatic control unit, 220-240 VAC, for NS630b-1600/NSX100-250/NSX400-630, 29470
Order No.: 01P3864
EAN: 3303430294702
MPN:
29470
Unit Price (€ / pc.)
1,462.2244 € *
Standard delivery time from the manufacturer is: 2 Weeks

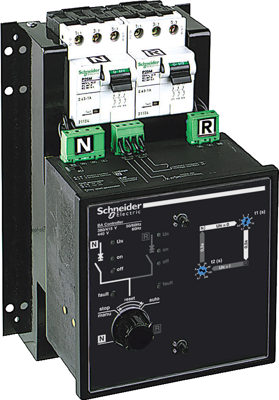

Remote control, 29470, Schneider Electric
It is a remote controlled source changeover system for Compact NSX, Compact NS and Masterpact devices. It is composed of an ACP plate and of an integrated BA controller. This ACP provides in a single unit the protection of the controller, the control and the connection to the devices. The BA controller is used to create simple source - changeover system that switch from one source to another depending on the presence of voltage UN on the “Normal” source. The BA controller is generally used to manage two permanent sources. The control voltage is from 220 VAC to 240 VAC 50/60 Hz.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 220-240 VAC | |
| Suitable for | NS630b-1600/NSX100-250/NSX400-630 | |
| Product type | interface and automatic control unit |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
