29352 | Schneider Electric
Electric locking, 48-415 VAC/440 VAC, for NS/NSX/NW/NT, 29352
Order No.: 01P3839
EAN: 3303430293521
MPN:
29352
Unit Price (€ / pc.)
378.5747 € *
Standard delivery time from the manufacturer is: 1 Week

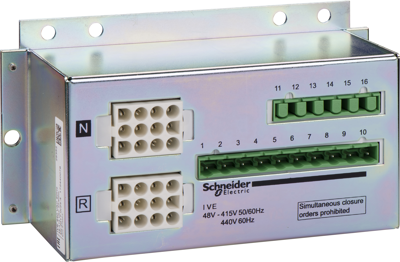

Electric locking, 29352, Schneider Electric
It is an IVE integrated control circuit for the electrical interlocking of Compact NSX, Compact NS and Masterpact devices. The electrical interlocking is used with a mechanical interlocking system. The relays controlling the closing order to the “N” and “R” circuit breakers must be mechanically and/or electrically interlocked to prevent them from giving simultaneous closing commands. The control voltage is from 48 VAC to 415 VAC 50/60 Hz, or 440 VAC 60 Hz.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 48-415 VAC/440 VAC | |
| Suitable for | NS/NSX/NW/NT | |
| Product type | electric locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85371091 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
