NSYSM18840P | Schneider Electric
Control cabinet, (H x W x D) 1800 x 800 x 400 mm, IP55, sheet steel, light gray, NSYSM18840P
NCNR (non cancelable / non returnable)
Control cabinet, NSYSM18840P, Schneider Electric

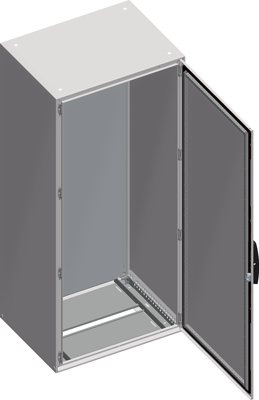

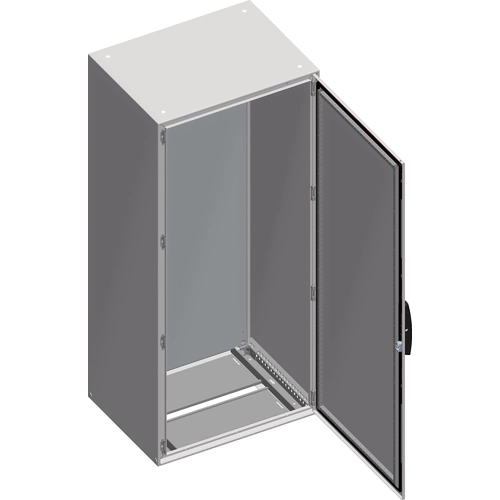

Spacial SM is a multi-purpose steel compact floor-standing enclosure designed for use in harsh environments. It is certified by DNV, UL and BV, and it has a high impact resistance with an IK10 rating (IEC62262) as well as a high resistance to dust and water with an IP55 rating (IEC60529). This enclosure has a nominal height, width and depth of 1800 mm, 800 mm and 400 mm, respectively the enclosure is made in grey color (RAL-7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005).
The enclosure consists of a body, a cable gland plate, a plain door, four mounting plate brackets, a mounting plate and a locking system with handle on the door the door can be opened up to 120°, allowing easy access to the equipment inside. The enclosure has a four-point lock with a handle with 5 mm double-bar insert. The door and the mounting plate brackets can be removed for maintenance purposes, the net weight of the enclosure is 107 kg.
| Filter | Property | Value |
|---|---|---|
| Product type | control cabinet | |
| Height | 1800 mm | |
| Width | 800 mm | |
| Depth | 400 mm | |
| Material | sheet steel | |
| Colour | light gray | |
| Degree of protection (IP) | IP55 |
| Property | Value |
|---|---|
| Customs tariff number | 85381000 |
| Country of origin | ES |
| Property | Value |
|---|---|
| SVHC free | Yes |
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
