NSYSM16840P | Schneider Electric
Control cabinet, (H x W x D) 1600 x 800 x 400 mm, IP55, sheet steel, light gray, NSYSM16840P
NCNR (non cancelable / non returnable)

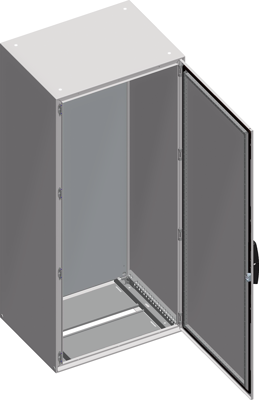

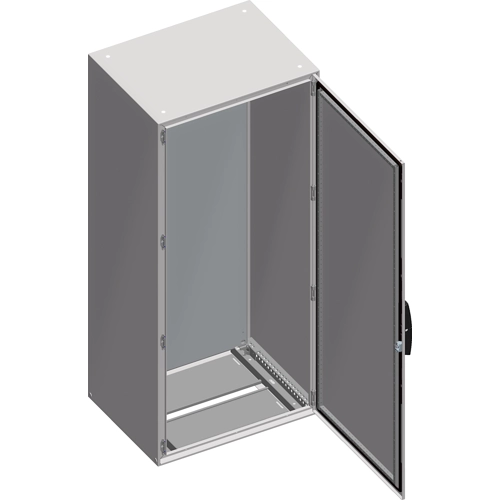

Control cabinet, NSYSM16840P, Schneider Electric
Spacial SM steel compact floor-standing enclosure is designed for multi-purpose applications. It is certified by BV, DNV and UL, and. It is designed for use in harsh environments, withstanding high impact due its IK10 rating (IEC62262) and having a high resistance to dust and water with an IP55 rating (IEC60529). This enclosure has a nominal height, width and depth of 1600 mm, 800 mm and 400 mm, respectively the enclosure is made in grey color (RAL-7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005).
The enclosure consists of a body, a cable gland plate, a mounting plate, four mounting plate brackets, a reversible door and a locking system with handle on the door the door can be opened up to 120°, allowing easy access to the equipment inside. The enclosure has a four-point lock with a handle with 5 mm double-bar insert. The door and the mounting plate brackets can be removed for maintenance purposes, the mounting plate is made of galvanized steel, the net weight of the enclosure is 98 kg.
| Filter | Property | Value |
|---|---|---|
| Product type | control cabinet | |
| Height | 1600 mm | |
| Width | 800 mm | |
| Depth | 400 mm | |
| Material | sheet steel | |
| Colour | light gray | |
| Degree of protection (IP) | IP55 |
| Property | Value |
|---|---|
| Customs tariff number | 85381000 |
| Country of origin | ES |
| Property | Value |
|---|---|
| SVHC free | Yes |
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
