NSYS3X4315 | Schneider Electric
Wall enclosure, (H x W x D) 400 x 300 x 150 mm, IP66, stainless steel, NSYS3X4315
NCNR (non cancelable / non returnable)

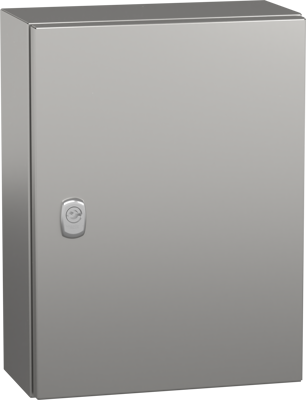

Wall mounted steel enclosure, NSYS3X4315, Schneider Electric
Spacial S3 x is a stainless steel 304L wall-mounting enclosure for a multi-purpose application and resistance to corrosion. It is designed for use in harsh environments. It can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529). This enclosure has a nominal height, width and depth of 400 mm, 300 mm and 150 mm respectively the enclosure is made with Scotch-Brite brushed surface finish.
The enclosure consists of a body, a plain door and a lock the door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible). The door has a 3 mm double-bar lock insert the door can be removed for maintenance purposes, the net weight of the enclosure is 5 kg.
| Filter | Property | Value |
|---|---|---|
| Product type | wall enclosure | |
| Height | 400 mm | |
| Width | 300 mm | |
| Depth | 150 mm | |
| Material | stainless steel | |
| Degree of protection (IP) | IP66 |
| Property | Value |
|---|---|
| Customs tariff number | 94032080 |
| Country of origin | BG |
| Property | Value |
|---|---|
| SVHC free | Yes |
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
