Wall cabinet, (H x W x D) 600 x 600 x 300 mm, IP66, steel, light gray, NSYS3D6630P
NCNR (non cancelable / non returnable)

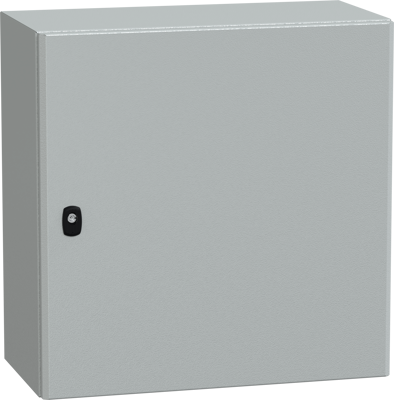

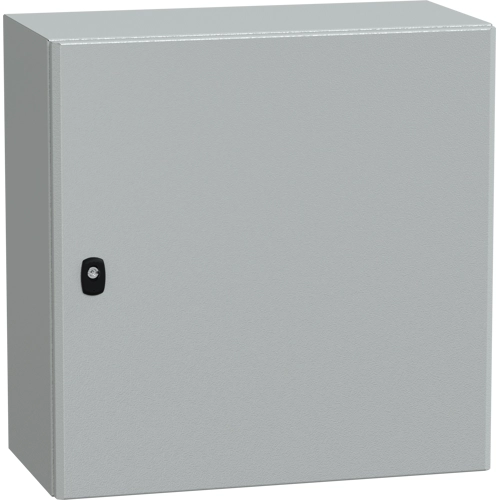

Wall mounted steel enclosure, NSYS3D6630P, Schneider Electric
Spacial S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments. It is certified by DNV, GL, UL, cUL, BV and LR. This enclosure has a nominal height, width and depth of 600 mm, 600 mm and 300 mm, respectively the enclosure is grey-coloured (RAL-7035) with an epoxy-polyester powder surface finish. The enclosure consists of a body, a mounting plate, a plain door with lock and a cable gland plate the door can be opened up to 120°, allowing easy access to the equipment inside furthermore, it is possible to change the opening side of the door (reversible). The door has a three-point lock with a 3 mm double-bar insert.
The door and the cable gland plate can be removed for maintenance purposes, the mounting plate is plain and is attached to the enclosure with a fixing element, the net weight of the enclosure is 21 kg It has a NEMA 4X/13 rating and is IK10 (IEC62262) and IP66 (IEC60529) rated, making it highly resistant to dust, water and impacts This enclosure also has a gutter-shaped front rail double sheet thickness and a single piece body the accessibility for operation is from the front.
| Filter | Property | Value |
|---|---|---|
| Product type | wall cabinet | |
| Height | 600 mm | |
| Width | 600 mm | |
| Depth | 300 mm | |
| Material | steel | |
| Colour | light gray | |
| Degree of protection (IP) | IP66 |
| Property | Value |
|---|---|
| Customs tariff number | 85381000 |
| Country of origin | FR |
| Property | Value |
|---|---|
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
