NSYS3D5520 | Schneider Electric
Wall cabinet, (H x W x D) 500 x 500 x 200 mm, IP66, steel, light gray, NSYS3D5520
NCNR (non cancelable / non returnable)

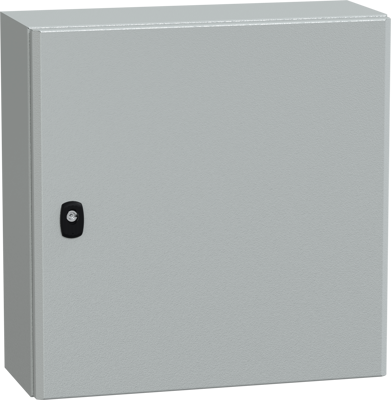

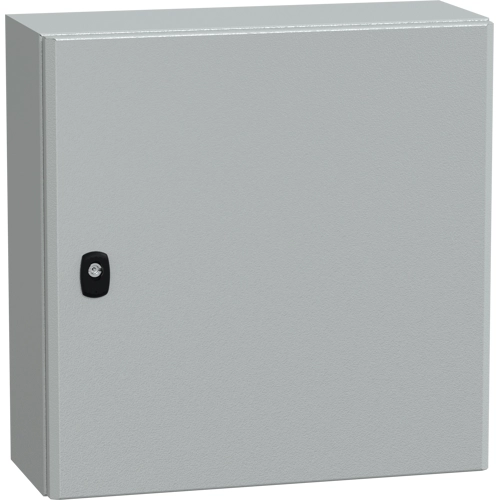

Wall mounted steel enclosure, NSYS3D5520, Schneider Electric
Spacial S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments. It can withstand high impact due to its IK10 (IEC62262) rating and has a high resistance to dust and water with an IP66 rating (IEC60529) and NEMA 4 x /13 rating. This enclosure has a nominal height, width and depth of 500 mm, 500 mm and 200 mm, respectively the enclosure is grey-coloured (RAL-7035) with an epoxy-polyester powder surface finish. The enclosure consists of a body, a cable gland plate, a plain door and a lock the door can be opened up to 120°, allowing easy access to the equipment inside furthermore, it is possible to change the opening side of the door (reversible).
The door has a three-point lock with a 3 mm double-bar insert. The door and the cable gland plate can be removed for maintenance purposes, the net weight of the enclosure is 9,88 kg The product is certified by GL, cUL, LR, UL, BV and DNV, and conforms to IEC 62208 standards.
| Filter | Property | Value |
|---|---|---|
| Product type | wall cabinet | |
| Height | 500 mm | |
| Width | 500 mm | |
| Depth | 200 mm | |
| Material | steel | |
| Colour | light gray | |
| Degree of protection (IP) | IP66 |
| Property | Value |
|---|---|
| Customs tariff number | 85381000 |
| Country of origin | FR |
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
