NSYS3D5420 | Schneider Electric
Wall cabinet, (H x W x D) 500 x 400 x 200 mm, IP66, steel, light gray, NSYS3D5420
NCNR (non cancelable / non returnable)

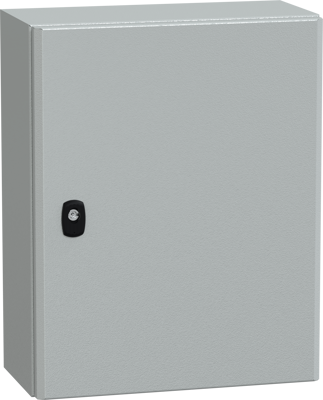

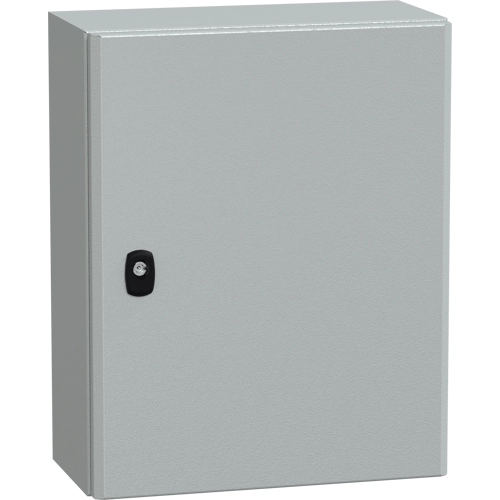

Wall mounted steel enclosure, NSYS3D5420, Schneider Electric
Spacial S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments. It is certified by UL, cUL, LR, BV, GL and DNV and has a NEMA 4 x /13 rating, providing high resistance to dust and water. This enclosure has a nominal height, width and depth of 500 mm, 400 mm and 200 mm, respectively the enclosure is grey-coloured (RAL-7035) with an epoxy-polyester powder surface finish. The enclosure consists of a body, a cable gland plate, a plain door and a lock the door can be opened up to 120°, allowing easy access to the equipment inside furthermore, it is possible to change the opening side of the door (reversible).
The door has a three-point lock with a 3 mm double-bar insert. The door and the cable gland plate can be removed for maintenance purposes, the net weight of the enclosure is 9,3 kg It has an IK10 (IEC62262) rating and an IP66 (IEC60529) rating, providing superior impact and dust/water protection. The enclosure has a single-piece body and a gutter-shaped front rail double sheet thickness for added strength Accessibility for operation is from the front.
| Filter | Property | Value |
|---|---|---|
| Product type | wall cabinet | |
| Height | 500 mm | |
| Width | 400 mm | |
| Depth | 200 mm | |
| Material | steel | |
| Colour | light gray | |
| Degree of protection (IP) | IP66 |
| Property | Value |
|---|---|
| Customs tariff number | 94032080 |
| Country of origin | FR |
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
