Wall cabinet, (H x W x D) 500 x 300 x 200 mm, IP66, steel, light gray, NSYS3D5320
NCNR (non cancelable / non returnable)

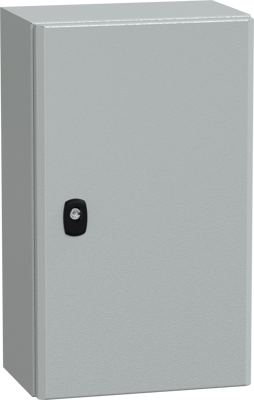

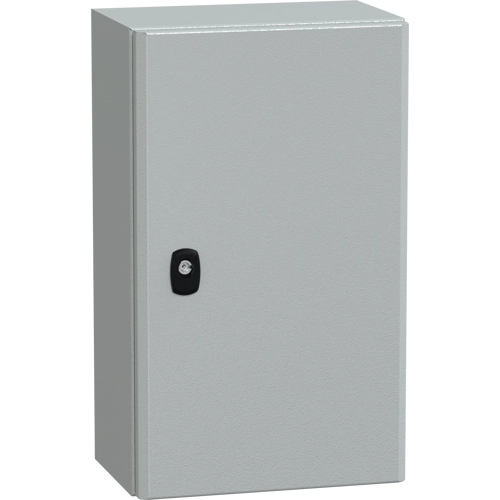

Wall mounted steel enclosure, NSYS3D5320, Schneider Electric
Spacial S3D is a multi-purpose monobloc wall-mounting enclosure designed to protect electrical and electronic equipment in harsh environments. It has an enclosure nominal height, width and depth of 500 mm, 300 mm and 200 mm, respectively the enclosure is made of steel and is grey-coloured (RAL-7035) with an epoxy-polyester powder surface finish. It has a NEMA 4 x /13 rating and an IP66 rating (IEC60529) for dust and water resistance Furthermore,. It has an IK10 (IEC62262) rating for high impact resistance. The enclosure consists of a body, one plain door, one lock and one cable gland plate the door can be opened up to 120°, allowing easy access to the equipment inside.
The door also has a three-point lock with a 3 mm double-bar insert. The door and the cable gland plate can be removed for maintenance purposes, the net weight of the enclosure is 7,5 kg It is certified by cUL, GL, BV, LR, DNV and UL It has a single-piece body and a gutter-shaped front rail double sheet thickness for extra strength It is accessible from the front.
| Filter | Property | Value |
|---|---|---|
| Product type | wall cabinet | |
| Height | 500 mm | |
| Width | 300 mm | |
| Depth | 200 mm | |
| Material | steel | |
| Colour | light gray | |
| Degree of protection (IP) | IP66 |
| Property | Value |
|---|---|
| Customs tariff number | 85381000 |
| Country of origin | FR |
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
