NSYS3D4320 | Schneider Electric
Wall cabinet, (H x W x D) 400 x 300 x 200 mm, IP66, steel, light gray, NSYS3D4320
NCNR (non cancelable / non returnable)

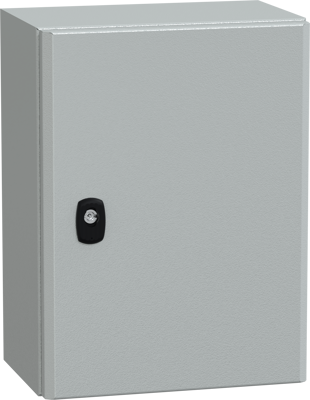

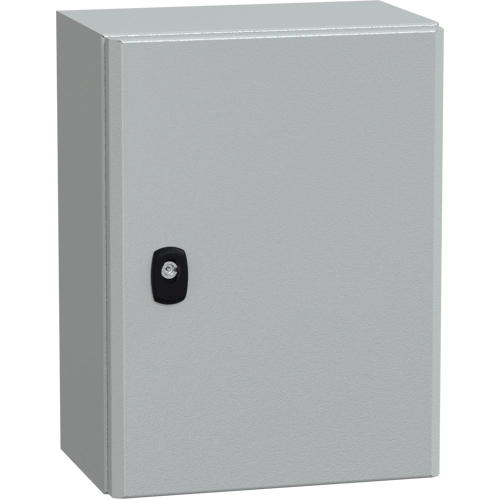

Wall mounted steel enclosure, NSYS3D4320, Schneider Electric
Spacial S3D is a multi-purpose monobloc wall-mounting enclosure with an enclosure nominal height, width and depth of 400 mm, 300 mm and 200 mm respectively the enclosure is made of steel, with a grey (RAL 7035) surface finish and an epoxy-polyester powder coating. It has a single door with a reversible (120°) opening side and a 3 mm double-bar lock.
The enclosure also features a cable gland plate, which can be removed for maintenance purposes, the net weight of the enclosure is 5 kg the enclosure is certified by DNV, UL, BV, cUL, GL and LR It has a NEMA 4X/13 rating and a IK10 (IEC62262) rating for high impact resistance, as well as an IP66 rating (IEC60529) for dust and water resistance. The enclosure has a single piece body and a gutter-shaped front rail double sheet thickness for added strength and durability the accessibility for operation is from the front The packaging is reusable after assembly.
| Filter | Property | Value |
|---|---|---|
| Product type | wall cabinet | |
| Height | 400 mm | |
| Width | 300 mm | |
| Depth | 200 mm | |
| Material | steel | |
| Colour | light gray | |
| Degree of protection (IP) | IP66 |
| Property | Value |
|---|---|
| Customs tariff number | 94032080 |
| Country of origin | FR |
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
