NSYS3D3415P | Schneider Electric
Wall cabinet, (H x W x D) 300 x 400 x 150 mm, IP66, steel, light gray, NSYS3D3415P
NCNR (non cancelable / non returnable)

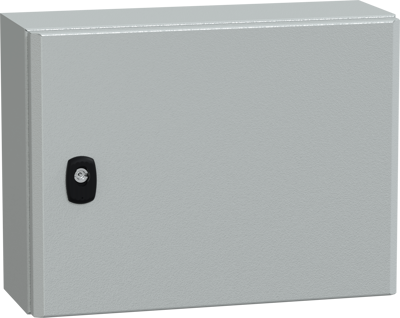

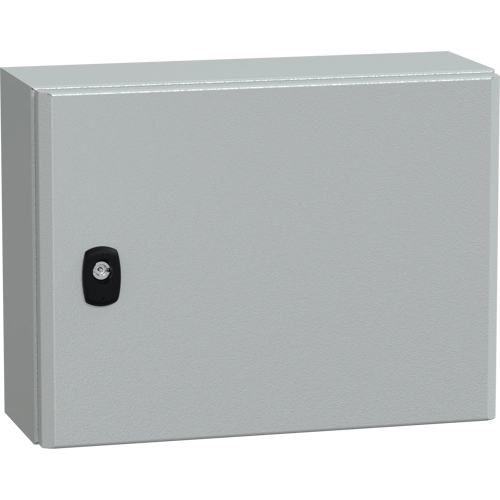

Wall mounted steel enclosure, NSYS3D3415P, Schneider Electric
Spacial S3D is a multi-purpose wall-mounting steel enclosure designed for use in harsh environments. It has a nominal height, width and depth of 300 mm, 400 mm and 150 mm, respectively. The enclosure has a grey-coloured (RAL-7035) epoxy-polyester powder surface finish. The enclosure consists of a body, a mounting plate, a plain door with a lock and a cable gland plate the door can be opened up to 120°, allowing easy access to the equipment inside furthermore, it is possible to change the opening side of the door (reversible).
The door has a three-point lock with a 3 mm double-bar insert. The door and the cable gland plate can be removed for maintenance purposes, the mounting plate is plain and can be removed with a fixing element, the net weight of the enclosure is 6 kg It has a NEMA 4X/13 rating and is highly resistant to dust and water with an IP66 rating (IEC60529) It can withstand high impact due to its IK10 (IEC62262) rating. This enclosure has a gutter-shaped front rail double sheet thickness and a single piece body Accessibility for operation is from the front It is certified by UL, cUL, DNV, BV, GL and LR.
| Filter | Property | Value |
|---|---|---|
| Product type | wall cabinet | |
| Height | 300 mm | |
| Width | 400 mm | |
| Depth | 150 mm | |
| Material | steel | |
| Colour | light gray | |
| Degree of protection (IP) | IP66 |
| Property | Value |
|---|---|
| Customs tariff number | 85381000 |
| Country of origin | FR |
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
