NSYS3D3215P | Schneider Electric
Wall cabinet, (H x W x D) 300 x 200 x 150 mm, IP66, steel, light gray, NSYS3D3215P
NCNR (non cancelable / non returnable)

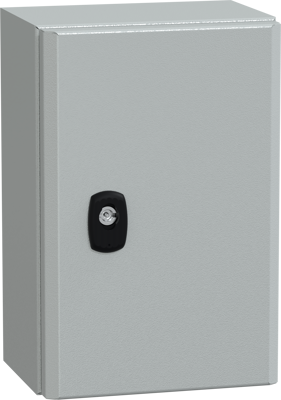

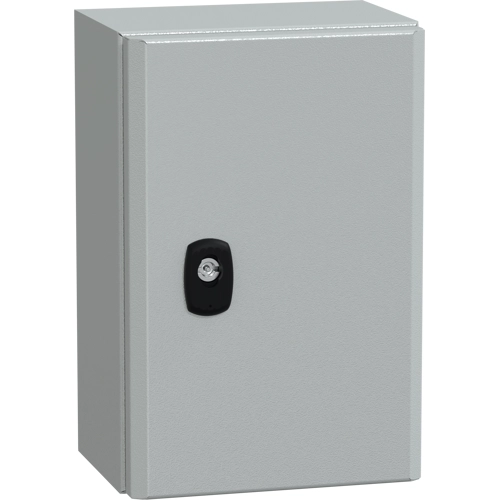

Wall mounted steel enclosure, NSYS3D3215P, Schneider Electric
Spacial S3D steel wall-mounting enclosure is designed for multi-purpose applications, making it suitable for use in harsh environments. It has a nominal height, width and depth of 300 mm, 200 mm and 150 mm, respectively the enclosure is grey-coloured (RAL-7035) with an epoxy-polyester powder surface finish. The enclosure consists of a body, a mounting plate, one plain door with a 3 mm double-bar lock, and one cable gland plate. The doors can be opened up to 120°, allowing easy access to the equipment inside furthermore, it is possible to change the opening side of the doors (reversible).
The doors and the cable gland plates can be removed for maintenance purposes, and the mounting plate can be removed by fixing element, the net weight of the enclosure is 3,58 kg. The enclosure has a NEMA 4X/13 rating, IK10 (IEC62262) rating and IP66 (IEC60529) rating, making it highly resistant to dust and water It also has a single piece body and a gutter-shaped front rail double sheet thickness for enhanced durability.
| Filter | Property | Value |
|---|---|---|
| Product type | wall cabinet | |
| Height | 300 mm | |
| Width | 200 mm | |
| Depth | 150 mm | |
| Material | steel | |
| Colour | light gray | |
| Degree of protection (IP) | IP66 |
| Property | Value |
|---|---|
| Customs tariff number | 85381000 |
| Country of origin | FR |
| Property | Value |
|---|---|
| SVHC free | Yes |
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
