Wall cabinet, (H x W x D) 1200 x 1000 x 300 mm, IP66, steel, light gray, NSYS3D121030P
NCNR (non cancelable / non returnable)

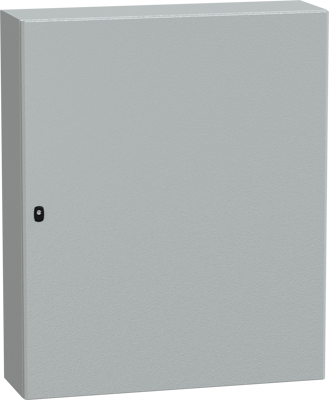

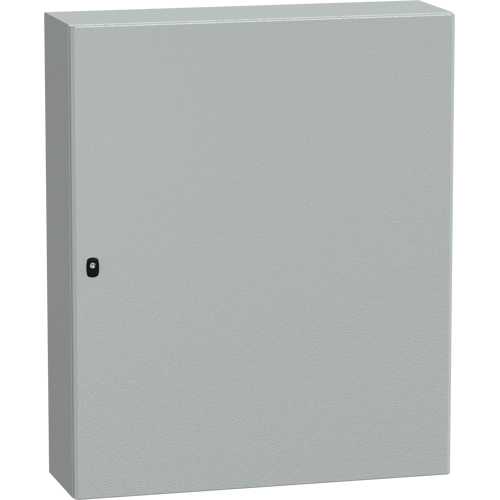

Wall mounted steel enclosure, NSYS3D121030P, Schneider Electric
Spacial S3D is a multi-purpose steel wall-mounting enclosure designed for use in harsh environments. It has a nominal height, width and depth of 1200 mm, 1000 mm and 300 mm, respectively the enclosure is grey-coloured (RAL-7035) with an epoxy-polyester powder surface finish. The enclosure consists of a body, two cable gland plates, a mounting plate and one door with a lock the door can be opened up to 120°, allowing easy access to the equipment inside furthermore, it is possible to change the opening side of the door (reversible).
The door has a three-point lock with a 3 mm double-bar insert, the door, the cable gland plates and the mounting plate can be removed for maintenance purposes, the net weight of the enclosure is 74 kg It has a NEMA 4X/13 rating and is IK10 (IEC62262) and IP66 (IEC60529) certified This enclosure features a gutter-shaped front rail double sheet thickness and a single piece body for added strength and durability the accessibility for operation is from the front It is certified by BV, LR, DNV, GL, UL and cUL.
| Filter | Property | Value |
|---|---|---|
| Product type | wall cabinet | |
| Height | 1200 mm | |
| Width | 1000 mm | |
| Depth | 300 mm | |
| Material | steel | |
| Colour | light gray | |
| Degree of protection (IP) | IP66 |
| Property | Value |
|---|---|
| Customs tariff number | 85381000 |
| Country of origin | FR |
| Property | Value |
|---|---|
| SVHC free | Yes |
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
