NSYS3D10825P | Schneider Electric
Wall cabinet, (H x W x D) 1000 x 800 x 250 mm, IP66, steel, light gray, NSYS3D10825P
NCNR (non cancelable / non returnable)

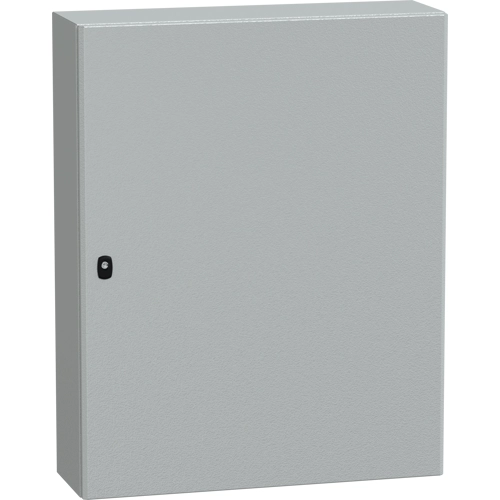

Wall mounted steel enclosure, NSYS3D10825P, Schneider Electric
Spacial S3D is a multi-purpose steel wall-mounting enclosure designed for use in harsh environments. It is certified by LR, UL, GL, cUL, DNV and BV. It has a nominal height, width and depth of 1000 mm, 800 mm and 250 mm, respectively the enclosure is grey-coloured (RAL-7035) with an epoxy-polyester powder surface finish. The enclosure consists of a body, two cable gland plates, a mounting plate, one plain door and a lock the door can be opened up to 120°, allowing easy access to the equipment inside furthermore, it is possible to change the opening side of the door (reversible).
The door has a three-point lock with a 3 mm double-bar insert. The door and the cable gland plates can be removed for maintenance purposes, the mounting plate is plain and can be fixed with a fixing element, the net weight of the enclosure is 49 kg It has NEMA 4X/13 rating and IK10 (IEC62262) and IP66 (IEC60529) protection ratings The enclosure features a single piece body and a gutter-shaped front rail double sheet thickness Accessibility for operation is from the front.
| Filter | Property | Value |
|---|---|---|
| Product type | wall cabinet | |
| Height | 1000 mm | |
| Width | 800 mm | |
| Depth | 250 mm | |
| Material | steel | |
| Colour | light gray | |
| Degree of protection (IP) | IP66 |
| Property | Value |
|---|---|
| Customs tariff number | 85381000 |
| Country of origin | FR |
| Property | Value |
|---|---|
| SVHC free | Yes |
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
