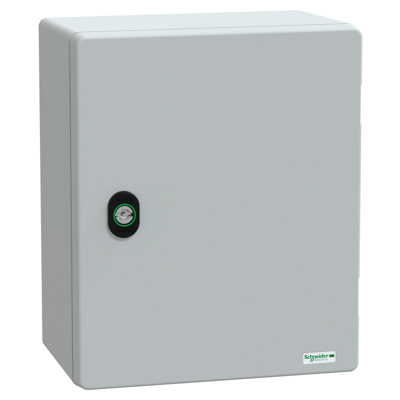

Wall mounted enclosure, NSYPLM3025PG, Schneider Electric
This PLM is a wall-mounted enclosure that is suitable for multi-purpose applications The enclosure has a nominal height, width, and depth of 308 mm, 255 mm, and 160 mm, respectively It is made of polyester reinforced with fibreglass for the body, which offers durability and resistance to industrial and outdoor environments The enclosure comes in a grey (RAL 7035) color The enclosure consists of one body, one door, one mounting plate, and one lock The door is plain, allowing easy visibility of the equipment inside The door can be opened from the front and has a 3 mm double-bar lock The mounting plate is made of plain steel and can be removed from the enclosure by a fixing element The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529) It is also highly resistant to impacts, with an IK10 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating The enclosure is UL certified and can be stored in ambient air temperatures ranging from -40 to 80°C without affecting its performance.
