13432 | Schneider Electric
Small distributor, 1x18 HP, (H x W x D) 280 x 448 x 160 mm, IP65/IK09, polymer, light gray, 13432
Unit Price (€ / pc.)
116.2630 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
116.26 € *
Price list
Quantity
Price per unit*
1 pcs.
116.2630 €
3 pcs.
113.2761 €
5 pcs.
110.4439 €
*incl. VAT plus shipping costs
Subject to prior sale
Mini distribution board, 13432, Schneider Electric

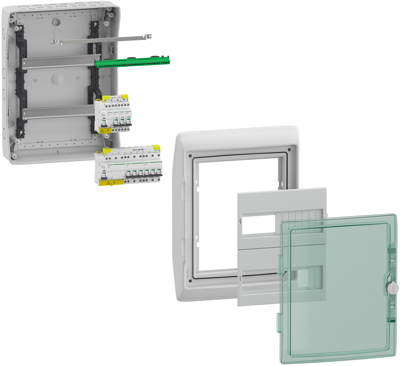

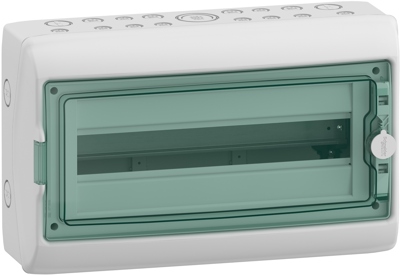

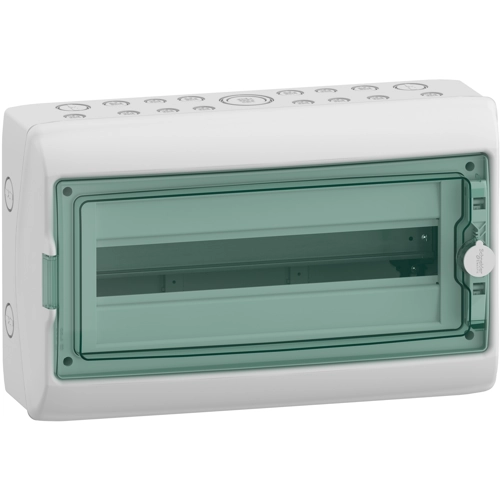

This Kaedra weatherproof versatile enclosure up to 18 modules in 1 row comes with reversible transparent cover. This enclosure is dedicated to indoor or outdoor waterproof installation. The dimensions of the box are (W) 448 mm x (H) 280 mm x (D) 160 mm. The rated current is 63 A, according to EN 60439-1 the complete insulation is Class 2. The degree of protection is IP65 and IK09. The color of the enclosure is light grey (RAL 7035). The operating temperature are between -25°C to 60°C. Empty, this enclosure is compliant with IEC 60670. Equipped switchboards, this enclosure is compliant with IEC 60493-3.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | small distributor | |
| Version | 1x18 HP | |
| Height | 280 mm | |
| Width | 448 mm | |
| Depth | 160 mm | |
| Material | polymer | |
| Colour | light gray | |
| Degree of protection (IP) | IP65/IK09 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85381000 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
