SSP3A250P7RT | Schneider Electric

Solid state relay, 180-280 VAC, momentary switching, 48-530 VAC, 50 A, screw mounting, SSP3A250P7RT

Order No.: 04P7046
EAN: 3606480580086
MPN:
SSP3A250P7RT
Series: Zelio Relay

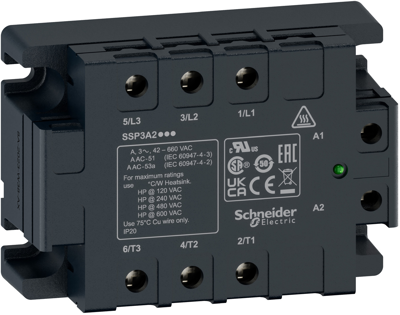

SSP3A250P7RT Schneider Electric Solid State Relays Image 1

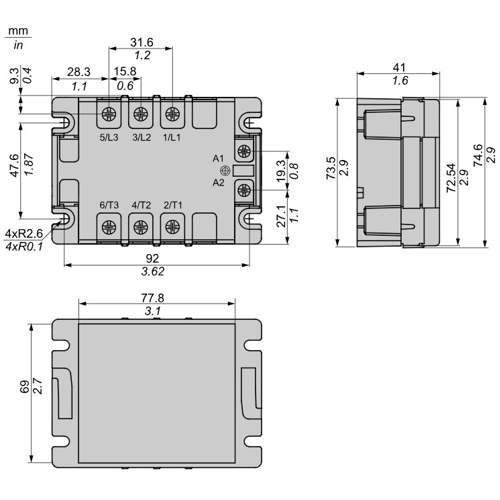

SSP3A250P7RT Schneider Electric Solid State Relays Image 2
Image may differ
Unit Price (€ / pc.)
206.5602 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
206.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
206.5602 €

Solid state relay, SSP3A250P7RT, Schneider Electric

This Zelio SSP solid state panel mount 3-phase relay is rated 50 A, is controlled with a 180 V to 280V AC input, has a rated load voltage of 48 V to 530V AC with random voltage switching, ideal for inductive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts.

Technical specifications
Filter Property Value
Rated current 50 A
Assembly screw mounting
Switching Mode momentary switching
LED display Yes
Voltage 48-530 VAC
Control Voltage 180-280 VAC
Logistics
Property Value
Customs tariff number 85364900
Country of origin MX
Compliance
Property Value
RoHS conform Yes
Sustainable Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
