SSP3A250BDT | Schneider Electric

Solid state relay, 4-32 VDC, zero voltage switching, 48-530 VAC, 50 A, screw mounting, SSP3A250BDT

Order No.: 04P7039
EAN: 3606480580024
MPN:
SSP3A250BDT
Series: Zelio Relay

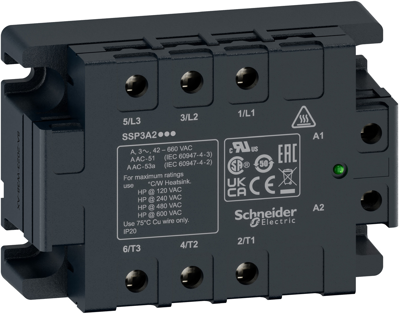

SSP3A250BDT Schneider Electric Solid State Relays Image 1

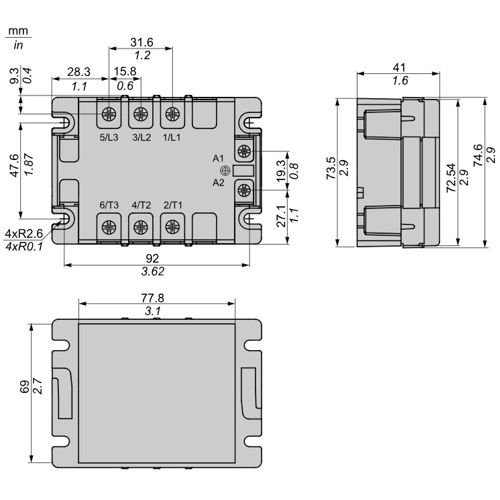

SSP3A250BDT Schneider Electric Solid State Relays Image 2
Image may differ
Unit Price (€ / pc.)
199.4559 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
199.46 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
199.4559 €

Solid state relay, SSP3A250BDT, Schneider Electric

This Zelio SSP solid state panel mount 3-phase relay is rated 50 A, is controlled with a 4 V to 32V DC input, has a rated load voltage of 48 V to 530V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts.

Technical specifications
Filter Property Value
Rated current 50 A
Assembly screw mounting
Switching Mode zero voltage switching
LED display Yes
Voltage 48-530 VAC
Control Voltage 4-32 VDC
Logistics
Property Value
Customs tariff number 85364900
Country of origin MX
Compliance
Property Value
RoHS conform Yes
Sustainable Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
