SSP3A250BD | Schneider Electric

Solid state relay, 4-32 VDC, zero voltage switching, screw mounting, SSP3A250BD

Order No.: 04P7036
EAN: 3606480579868
MPN:
SSP3A250BD
Series: Zelio Relay

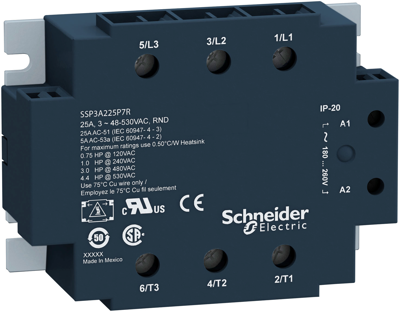

SSP3A250BD Schneider Electric Solid State Relays Image 1

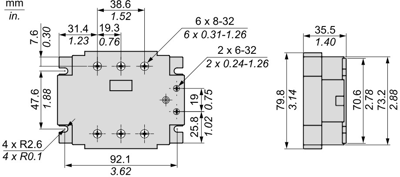

SSP3A250BD Schneider Electric Solid State Relays Image 2
Image may differ
Unit Price (€ / pc.)
194.7316 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
194.73 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
194.7316 €

Solid state relay, SSP3A250BD, Schneider Electric

This panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs Its rated current is 50 A, is controlled with a 4 to 32 V DC circuit, has a rated load voltage of 48 to 530 V AC output. It also has a test button for easy debugging, testing and commissioning It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events.

Technical specifications
Filter Property Value
Assembly screw mounting
Switching Mode zero voltage switching
LED display Yes
Control Voltage 4-32 VDC
Logistics
Property Value
Customs tariff number 85364900
Country of origin MX
Compliance
Property Value
RoHS conform Yes
Sustainable Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
