SSP3A250B7 | Schneider Electric

Solid state relay, 18-36 VAC, zero voltage switching, 48-530 VAC, 50 A, screw mounting, SSP3A250B7

Order No.: 04P7032
EAN: 3606480579875
MPN:
SSP3A250B7
Series: Zelio Relay

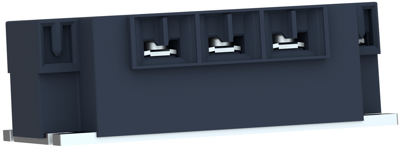

SSP3A250B7 Schneider Electric Solid State Relays Image 1

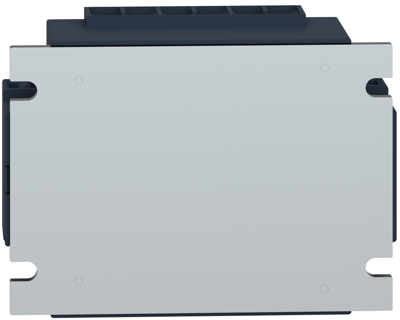

SSP3A250B7 Schneider Electric Solid State Relays Image 2

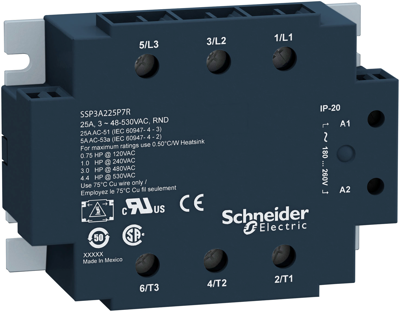

SSP3A250B7 Schneider Electric Solid State Relays Image 3

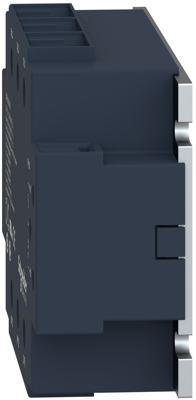

SSP3A250B7 Schneider Electric Solid State Relays Image 4

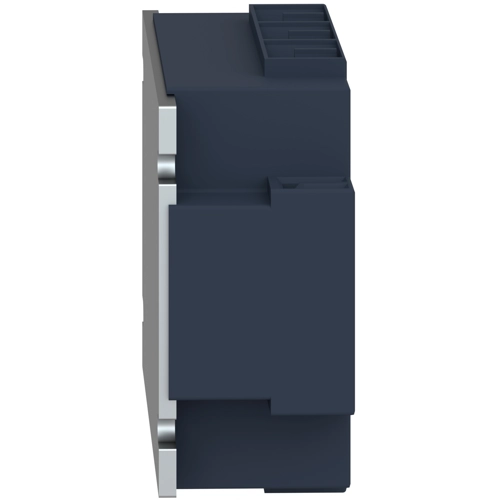

SSP3A250B7 Schneider Electric Solid State Relays Image 5
Image may differ
Unit Price (€ / pc.)
193.1489 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
193.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
193.1489 €

Solid state relay, SSP3A250B7, Schneider Electric

This SSP three-phase solid state relay is part of the range of solid state modular relays Zelio. It features 50 A power rating and 3 NO contacts. It features a control circuit voltage of 18 V to 36V AC and an output voltage (load output) of 48 V to 530V AC. This relay is maintenance free, fully electronic with unlimited life span. It features a control input voltage LED indicator in green. Its protection index is IP20. It weighs 240g and its dimensions are, 101.3 mm wide, 79.7 mm high, 35.4 mm deep. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. It can be mounted on panel fixed by screws.

Technical specifications
Filter Property Value
Rated current 50 A
Assembly screw mounting
Switching Mode zero voltage switching
LED display Yes
Voltage 48-530 VAC
Control Voltage 18-36 VAC
Logistics
Property Value
Customs tariff number 85364900
Country of origin MX
Compliance
Property Value
RoHS conform Yes
Sustainable Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
