SSP1D440BD | Schneider Electric
Solid state relay, 3.5-32 VDC, DC switching, screw mounting, SSP1D440BD
Unit Price (€ / pc.)
56.9177 € *
Standard delivery time from the manufacturer is: 1 Week

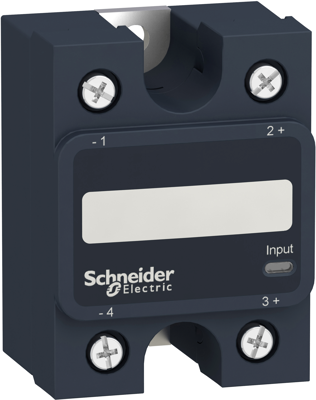

Solid state relay, SSP1D440BD, Schneider Electric

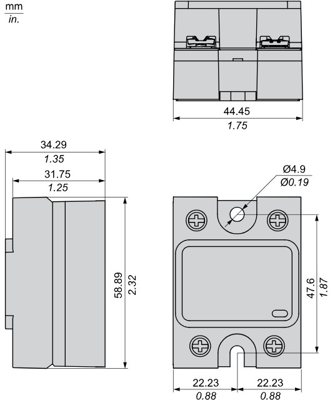

Solid state relay for mounting on a heat sink or mounting plate. The low internal voltage drop reduces power loss. Switching voltage 1-150 VDC. Current 40 A. Pole 1. behaviour DC switching. Control voltage 3.5-32 VDC. LED display. Dimensions 45x59x35 mm. Hockey puck design. Terminals with telescopic screws facilitate the connection of cables with eyelets and cable lugs. A thermal analysis must be carried out to select the separate heat sink.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Mode | DC switching | |
| Control Voltage | 3.5-32 VDC | |
| Assembly | screw mounting |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| SVHC free | Yes |
| RoHS conform | Yes |
