SSP1A4125BDT | Schneider Electric

Solid state relay, 4-32 VDC, zero voltage switching, 48-660 VAC, 125 A, screw mounting, SSP1A4125BDT

Order No.: 04P6994
EAN: 3606485442105
MPN:
SSP1A4125BDT
Series: Zelio Relay

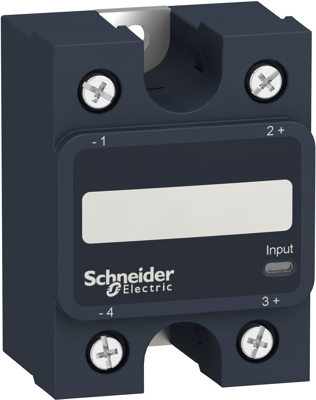

SSP1A4125BDT Schneider Electric Solid State Relays Image 1
SSP1A4125BDT Schneider Electric Solid State Relays Image 2
Image may differ
Unit Price (€ / pc.)
89.8807 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
89.88 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
89.8807 €

Solid state relay, SSP1A4125BDT, Schneider Electric

This Zelio SSP solid state panel mount single-phase relay is rated 125 A, is controlled with a 4 V to 32V DC input, has a rated load voltage of 48 V to 660V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts.

Technical specifications
Filter Property Value
LED display Yes
Voltage 48-660 VAC
Control Voltage 4-32 VDC
Assembly screw mounting
Switching Mode zero voltage switching
Rated current 125 A
Logistics
Property Value
Customs tariff number 85364900
Country of origin MX
Compliance
Property Value
Substance description Lead
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
