SSP1A150BD | Schneider Electric

Solid state relay, 3-32 VDC, zero voltage switching, screw mounting, SSP1A150BD

Order No.: 04P6985
EAN: 3606485441863
MPN:
SSP1A150BD
Series: Zelio Relay

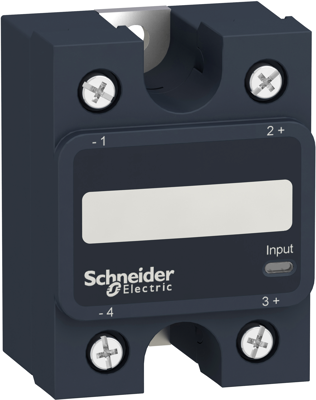

SSP1A150BD Schneider Electric Solid State Relays Image 1
SSP1A150BD Schneider Electric Solid State Relays Image 2
Image may differ
Unit Price (€ / pc.)
39.3414 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
39.34 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
39.3414 €

Solid state relay, SSP1A150BD, Schneider Electric

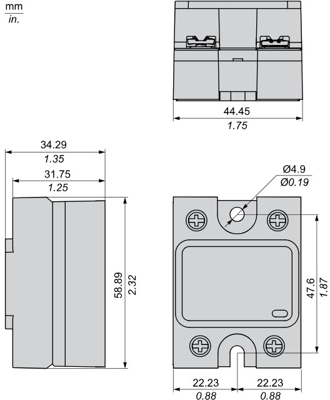

Solid state relay for mounting on a heat sink or mounting plate. The low internal voltage drop reduces power loss. Switching voltage 24-300 VAC. Current 50 A. Phase 1. zero-voltage switching behaviour. Control voltage 3-32 VDC. LED display. Dimensions 45x59x35 mm. Hockey puck design. Terminals with telescopic screws facilitate the connection of cables with eyelets and cable lugs. A thermal analysis must be carried out to select the separate heat sink.

Technical specifications
Filter Property Value
LED display Yes
Control Voltage 3-32 VDC
Assembly screw mounting
Switching Mode zero voltage switching
Logistics
Property Value
Customs tariff number 85364900
Country of origin MX
Compliance
Property Value
Substance description Lead
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
