SSP1A125M7 | Schneider Electric
Solid state relay, 90-280 VAC, zero voltage switching, DIN rail, SSP1A125M7
Unit Price (€ / pc.)
36.7353 € *
Standard delivery time from the manufacturer is: 1 Week

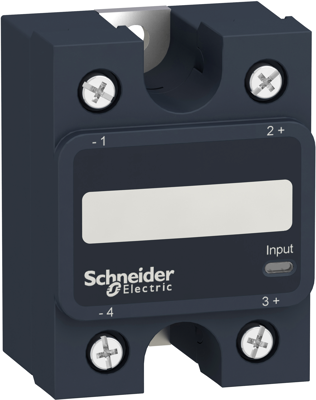

Solid state relay, SSP1A125M7, Schneider Electric

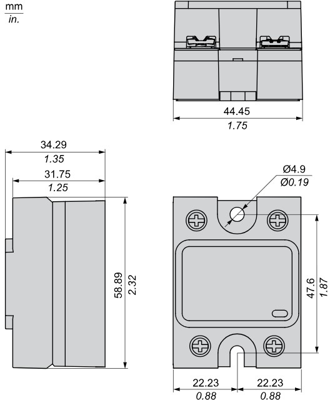

Solid state relay for mounting on a heat sink or mounting plate. The low internal voltage drop reduces power loss. Switching voltage 24-300 VAC. Current 25 A. Phase 1. zero-voltage switching behaviour. Control voltage 3-32 VDC. LED display. Dimensions 45x59x35 mm. Hockey puck design. Terminals with telescopic screws facilitate the connection of cables with eyelets and cable lugs. A thermal analysis must be carried out to select the separate heat sink.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| LED display | Yes | |
| Switching Mode | zero voltage switching | |
| Assembly | DIN rail | |
| Control Voltage | 90-280 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Sustainable | Yes |
