SSP1A125BD | Schneider Electric
Solid state relay, 3-32 VDC, zero voltage switching, 24-300 VAC, 25 A, screw mounting, SSP1A125BD
Unit Price (€ / pc.)
31.3803 € *
Standard delivery time from the manufacturer is: 1 Week

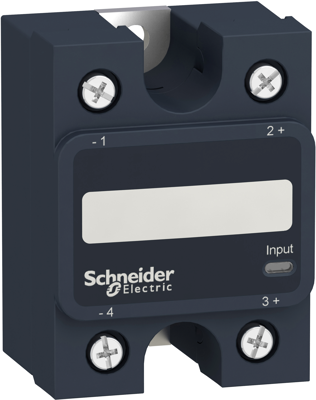

Solid state relay, SSP1A125BD, Schneider Electric
This panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs Its rated current is 25 A, is controlled with a 3 to 32 V DC circuit, has a rated load voltage of 24 to 300 V AC output. It also has a test button for easy debugging, testing and commissioning It mounts on metallic panel surface, with an excellent thermal dissipation capability thanks to its factory-installed thermal pad, or on DIN rails with an accessory heatsink It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 25 A | |
| Assembly | screw mounting | |
| Switching Mode | zero voltage switching | |
| LED display | Yes | |
| Voltage | 24-300 VAC | |
| Control Voltage | 3-32 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
