SSM3A325P7 | Schneider Electric
Solid state relay, 180-280 VAC, zero voltage switching, DIN rail, SSM3A325P7
Unit Price (€ / pc.)
185.2711 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
185.27 € *
Price list
Quantity
Price per unit*
1 pcs.
185.2711 €
3 pcs.
180.2612 €
*incl. VAT plus shipping costs
Subject to prior sale
Solid state relay, SSM3A325P7, Schneider Electric

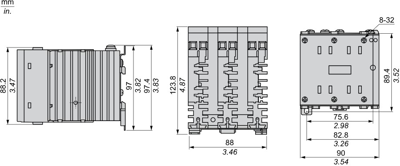

Solid state relay for DIN rail mounting with aluminium heat sink. The load circuit is designed for 3-phase networks in the 48-600 VAC range and 25 A per phase can be switched. The switching behaviour is zero-voltage switching and corresponds to 3 NO contacts. The control voltage is 180-280 VAC and switches all phases. An LED display provides information about the activation. The connection is made with screw terminals. Width 88 mm.
Technical specifications
| Switching Mode | zero voltage switching | |
| Assembly | DIN rail | |
| Control Voltage | 180-280 VAC |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85413000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Sustainable | Yes |
