SSM2A16BDR | Schneider Electric
Solid state relay, 4-32 VDC, momentary switching, DIN rail, SSM2A16BDR
Unit Price (€ / pc.)
66.3782 € *
Available: 0 pcs.
Leadtime: On Request **

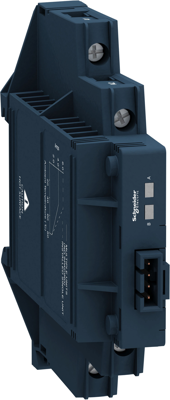

Solid state relay, SSM2A16BDR, Schneider Electric
This Zelio SSM solid state modular DIN rail dual channel relay is rated 6A, is controlled with a 4V to 32V DC input, has a rated load voltage of 24V to 280V AC with random voltage switching, ideal for inductive loads. It also has a visual indicator showing the status of each of its inputs. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. It also has a visual indicator LED for a simpler troubleshooting and commissioning. Its clear schematic on the side of the socket enables easier wiring and maintenance.
Technical specifications
| Assembly | DIN rail | |
| Switching Mode | momentary switching | |
| Control Voltage | 4-32 VDC |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) |
| Sustainable | Yes |
