SSM2A16BD | Schneider Electric
Solid state relay, 4-32 VDC, zero voltage switching, DIN rail, SSM2A16BD
Unit Price (€ / pc.)
64.4861 € *
Standard delivery time from the manufacturer is: 1 Week

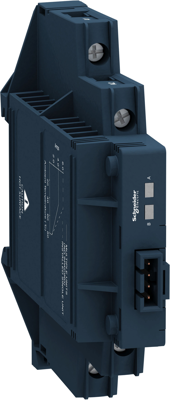

Solid state relay, SSM2 A16BD, Schneider Electric
This Zelio SSM solid state modular DIN rail dual channel relay is rated 6 A, is controlled with a 4 V to 32V DC input, has a rated load voltage of 24 V to 280V AC with zero voltage switching, ideal for resistive loads. It also has a visual indicator showing the status of each of its inputs. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. It also has a visual indicator LED for a simpler troubleshooting and commissioning. Its clear schematic on the side of the socket enables easier wiring and maintenance.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | DIN rail | |
| Switching Mode | zero voltage switching | |
| Control Voltage | 4-32 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
