SSM1A312BDR | Schneider Electric
Solid state relay, 4-32 VDC, momentary switching, DIN rail, SSM1A312BDR
Unit Price (€ / pc.)
53.3715 € *
Standard delivery time from the manufacturer is: 1 Week

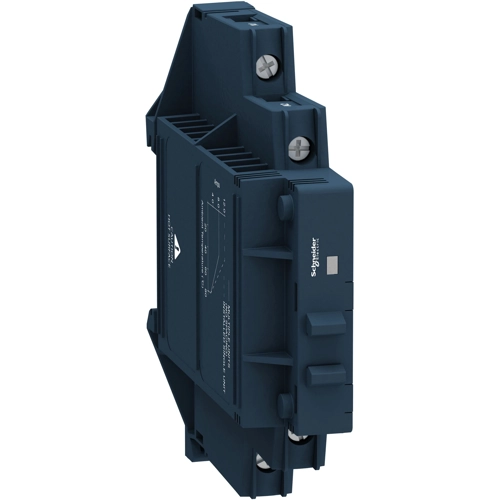

Solid state relay, SSM1A312BDR, Schneider Electric
This Zelio SSM solid state modular DIN rail single-phase relay is rated 12 A, is controlled with a 4 V to 32V DC input, has a rated load voltage of 48V to 600V AC with random voltage switching, ideal for inductive loads. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | DIN rail | |
| Control Voltage | 4-32 VDC | |
| Switching Mode | momentary switching |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Sustainable | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
