SSM1A16F7 | Schneider Electric
Solid state relay, 90-140 VAC, zero voltage switching, DIN rail, SSM1A16F7
Unit Price (€ / pc.)
45.6484 € *
Standard delivery time from the manufacturer is: 16 Weeks

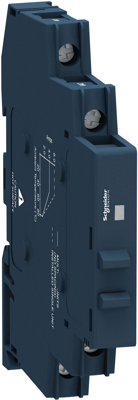

Solid state relay, SSM1A16F7, Schneider Electric
This Zelio SSM solid state modular DIN rail single-phase relay is rated 6 A, is controlled with a 90 V to 140V AC input, has a rated load voltage of 24 V to 280V AC with zero voltage switching, ideal for resistive loads. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | DIN rail | |
| Control Voltage | 90-140 VAC | |
| Switching Mode | zero voltage switching |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| Sustainable | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
