SSM1A16BD | Schneider Electric
Solid state relay, 4-32 VDC, zero voltage switching, 24-280 VAC, 6 A, DIN rail, SSM1A16BD
Unit Price (€ / pc.)
42.0189 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
42.02 € *
Price list
Quantity
Price per unit*
1 pcs.
42.0189 €
5 pcs.
40.8884 €
*incl. VAT plus shipping costs
Subject to prior sale

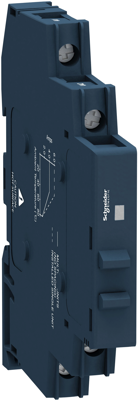

Solid state relay, SSM1A16BD, Schneider Electric
This Zelio SSM solid state modular DIN rail single-phase relay is rated 6 A, is controlled with a 4 V to 32V DC input, has a rated load voltage of 24 V to 280V AC with zero voltage switching, ideal for resistive loads. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | DIN rail | |
| Control Voltage | 4-32 VDC | |
| Switching Mode | zero voltage switching | |
| Voltage | 24-280 VAC | |
| Rated current | 6 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| Sustainable | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
