SSM1A16B7 | Schneider Electric
Solid state relay, 18-36 VAC, zero voltage switching, DIN rail, SSM1A16B7
Unit Price (€ / pc.)
44.863 € *
Standard delivery time from the manufacturer is: 1 Week

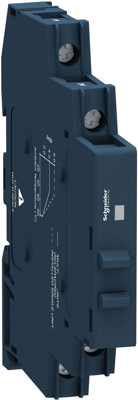

Solid state relay, SSM1A16B7, Schneider Electric

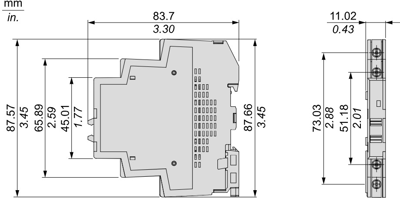

Modular solid state relay for DIN rail mounting in an innovative, compact design with a cooling surface on the side. The load circuit is designed for single-phase networks in the 24-280 VAC range and 6 A can be switched. The switching behaviour is zero-voltage switching and corresponds to a normally open contact. The control voltage is 18-36 VAC. An LED display provides information about the activation. The connection is made with screw terminals. The dimensions are 11x88x84 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Mode | zero voltage switching | |
| Assembly | DIN rail | |
| Control Voltage | 18-36 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
