VW3A7105 | Schneider Electric

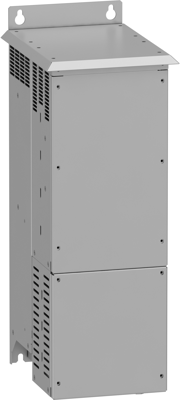

Brake module, 100 kW, 480 V (AC), VW3A7105

Order No.: 06N0069
EAN: 3606485435824
MPN:
VW3A7105
VW3A7105 Schneider Electric Soft Starters, Braking Devices
Image may differ
Unit Price (€ / pc.)
2,062.1510 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
2,062.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2,062.1510 €

Brake module, VW3A7105, Schneider Electric

This braking unit is an option for variable speed drives of Altivar range. The minimum resistor value to associate is 2.5Ohm. This braking unit allows Altivar 71 drives to operate while braking to a standstill or during “generator” operation, by dissipating the energy in the braking resistor. Its protection index is IP20. Thermal protection is provided by an integrated temperature probe. It weighs 28kg.

Technical specifications
Degree of protection (IP) IP20
Power 100 kW
Rated voltage (AC) 480 V
Version brake module
min. operating temperature -10 °C
max. operating temperature 50 °C
Logistics
Country of origin CN
Customs tariff number 85049090
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
