TPRPM080 | Schneider Electric

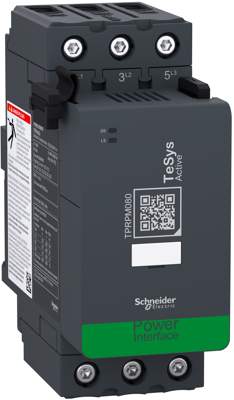

Direct starter, 37 kW, 80 A, 24 V (DC), TPRPM080

Order No.: 03P8250
EAN: 3606489832865
MPN:
TPRPM080
Series: TeSys island
TPRPM080 Schneider Electric Soft Starters, Braking Devices
Image may differ
Unit Price (€ / pc.)
252.1015 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
252.10 € *
Price list
Quantity
Price per unit*
1 pcs.
252.1015 €
3 pcs.
245.4970 €
*incl. VAT plus shipping costs
Subject to prior sale

Direct starter, TPRPM080, Schneider Electric

TeSys island power module, 3 poles, 80 A/690 V. Connected to a TPRBC bus coupler it protects and monitors loads up to 80 A and motors up to 37kW@400V / 40hp@480V. External power switching devices could be controlled if associated to a digital IO module TPRDG4X2. It provides motor protection functions including thermal overload (setting 4-80 A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Technical specifications
Rated voltage (DC) 24 V
Degree of protection (IP) IP20
Rated current 80 A
Power 37 kW
Version direct starter
min. operating temperature -10 °C
max. operating temperature 50 °C
Standard number IEC 60947-4-1
Logistics
Country of origin FR
Customs tariff number 90303370
Compliance
Date of RoHS guidelines 3/31/15
Substance description boron trioxide, lead monoxide, lead
SVHC free No
RoHS conform Yes
