TPRPM038 | Schneider Electric
Direct starter, 18.5 kW, 38 A, 24 V (DC), TPRPM038
Unit Price (€ / pc.)
139.1229 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
139.12 € *
Price list
Quantity
Price per unit*
1 pcs.
139.1229 €
3 pcs.
135.2792 €
5 pcs.
131.6378 €
*incl. VAT plus shipping costs
Subject to prior sale

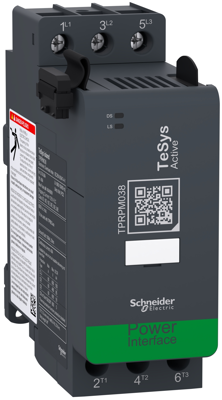

Direct starter, TPRPM038, Schneider Electric
TeSys island power module, 3 poles, 38 A/690 V. Connected to a TPRBC bus coupler it protects and monitors loads up to 38 A and motors up to 18.5kW@400V / 20hp@480V. External power switching devices could be controlled if associated to a digital IO module TPRDG4X2. It provides motor protection functions including thermal overload (setting 0.76-38 A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP20 | |
| min. operating temperature | -10 °C | |
| Rated current | 38 A | |
| max. operating temperature | 50 °C | |
| Version | direct starter | |
| Power | 18.5 kW | |
| Standard number | IEC 60947-4-1 | |
| Rated voltage (DC) | 24 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303370 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | boron trioxide, lead monoxide, lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
