ATSU01N206LT | Schneider Electric
Soft starter, 3 phase, 3 kW, 6 A, 480 V (AC), ATSU01N206LT
Unit Price (€ / pc.)
194.8625 € *
Standard delivery time from the manufacturer is: 1 Week

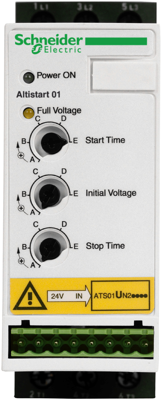

Soft starter, ATSU01N206LT, Schneider Electric
The Altistart U01 is a soft start/soft stop unit for 3-phase asynchronous motors. It is designed primarily for combinations with TeSys U starter-controllers. It can be used for a motor rated power up to 3kW or 3hp for 3-phase (200V to 480V AC) and up to 6A rating. It is 45mm wide, this makes it one of the smallest soft starters on the market. It can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Its protection index is IP20.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | soft starter | |
| Degree of protection (IP) | IP20 | |
| max. operating temperature | 40 °C | |
| Power | 3 kW | |
| Standard number | EN/IEC 60947-4-2 | |
| Rated voltage (AC) | 480 V | |
| Number of phases | 3 | |
| min. operating temperature | -10 °C | |
| Rated current | 6 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85371098 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
