ATS01N125FT | Schneider Electric
Soft starter, 1 phase, 11 kW, 25 A, 480 V (AC), ATS01N125FT
Unit Price (€ / pc.)
234.9298 € *
Standard delivery time from the manufacturer is: 1 Week

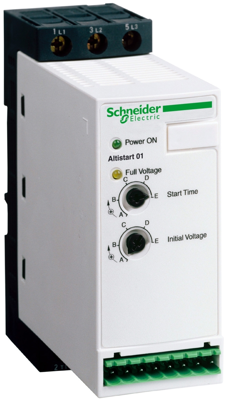

Soft starter, ATS01N125FT, Schneider Electric
The alternative to the star-delta starter! Compact and inexpensive electronic starting for standard applications. Soft starter for asynchronous motors. Rated current 25 A, 230V power 5.5 kW, 400V power 11 kW. The soft starter enables the gentle starting of three-phase asynchronous motors and prevents current peaks in the start-up phase as well as mechanical load surges. Typical applications: conveyor belts, conveyors, pumps, fans, compressors, etc. Extremely simple commissioning, integrated bypass, optional signal outputs or control voltage internally or externally, boost function for high breakaway torque.
Features
- Provides smooth starting for your pumps, fans, compressors and machinery
- Avoid mechanical stresses and extend their service life
- Progressive start limits the starting and stopping noise of motors
- Reduce hearing discomfort for operators on the workfloor
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of phases | 1 | |
| Degree of protection (IP) | IP20 | |
| min. operating temperature | -10 °C | |
| Rated current | 25 A | |
| max. operating temperature | 40 °C | |
| Rated voltage (AC) | 480 V | |
| Version | soft starter | |
| Power | 11 kW | |
| Standard number | EN/IEC 60947-4-2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85371098 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
