PKS62B | Schneider Electric
Surface-mounted german schuko-style socket outlet, blue, 16 A/250 V, Germany, IP54, PKS62B
Unit Price (€ / pc.)
11.1265 € *
Standard delivery time from the manufacturer is: 1 Week

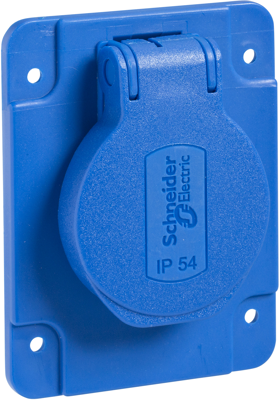

Socket outlet, PKS62B, Schneider Electric
This PratiKa side connected domestic German standard socket with captive screws connection is straight panel-mounted. It has 2P+E pole, rated current is 10 A to 16 A and the operating voltage is 250V AC. The dimensions of the base plate are (W) 65 mm x (H) 85 mm. The degree of protection is IP54 and IK09. The fire resistance is 850°C. This panel mounted socket can be fitted directly on Kaedra enclosures or on wall boxes. The color of the socket is blue to easily identify the operating voltage. The frequency is 50 Hz or 60 Hz.
Technical specifications
| Version | Surface-mounted german schuko-style socket outlet | |
| Hinged cover available | Yes | |
| Connection | screw connection | |
| Degree of protection (IP) | IP54 | |
| Colour | blue | |
| Nominal power | 16 A/250 V | |
| Country code | Germany |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Sustainable | Yes |
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
