PKN61B | Schneider Electric

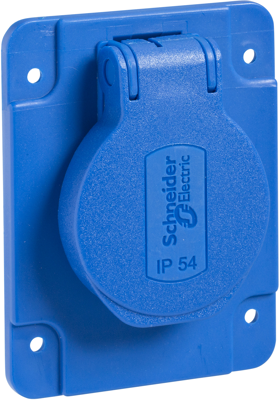

Surface-mounted german schuko-style socket outlet, blue, 16 A/250 V, Germany, IP54, PKN61B

Order No.: 04P5380
EAN: 4099889876857
MPN:
PKN61B
Series: PratiKa
PKN61B Schneider Electric Sockets, Device Sockets
Image may differ
Unit Price (€ / pc.)
11.1265 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
11.13 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
11.1265 €

Socket outlet, PKN61B, Schneider Electric

This PratiKa rear connected domestic French standard socket with captive screws connection is straight panel-mounted. It has 2P+E pole, rated current is 10 A to 16 A and the operating voltage is 250V AC. The dimensions of the base plate are (W) 65 mm x (H) 85 mm. The degree of protection is IP54 and IK09. The fire resistance is 850°C. This panel mounted socket can be fitted directly on Kaedra enclosures or on wall boxes. The color of the socket is blue to easily identify the operating voltage. The frequency is 50 Hz or 60 Hz.

Technical specifications
Version Surface-mounted german schuko-style socket outlet
Hinged cover available Yes
Connection screw connection
Degree of protection (IP) IP54
Colour blue
Nominal power 16 A/250 V
Country code Germany
Logistics
Country of origin AT
Customs tariff number 85366990
Compliance
Sustainable Yes
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
