VW3M5501R500 | Schneider Electric

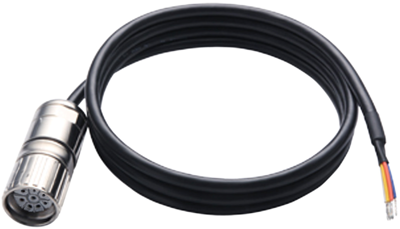

Sensor actuator cable, M23-cable plug, straight to open end, 8 pole, 50 m, PVC, orange, VW3M5501R500
Unit Price (€ / pc.)
1,379.4837 € *
Standard delivery time from the manufacturer is: 5 Weeks
Power cable, VW3M5501R500, Schneider Electric
This power cordset enables connection between synchronous motor BMP and variable speed drive Altivar 32 or Altivar 320. It is equipped with one 8-way M23 connector for synchronous motor side and one free end for variable speed drive side. it is 50 meters shielded cable.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (2) | open end | |
| Pin number | 8 pole | |
| Colour | orange | |
| Material | PVC | |
| max. Voltage | 600 V | |
| Cable length | 50 m | |
| LED display | No | |
| Connection (1) | M23-cable plug, straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | not_specified |
| Date of RoHS guidelines | 3/31/15 |
