A9E15120 | Schneider Electric
Rotary switch, 2 pole, 3 stage, On-Off-On, 10 A, 415 V, A9E15120
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
61.8919 € *
Standard delivery time from the manufacturer is: 1 Week

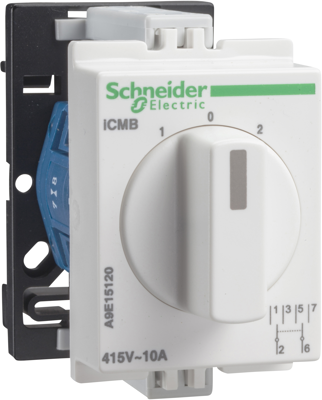

Selector switch, A9E15120, Schneider Electric
This Acti9 iCM is a selector switch used for the manual control of electric circuits. It is 2 positions switch with 2 changeover contacts (2 C/O). The phase-separated wall can be divided to allow all the types of com busbar to pass through. It comes with staggered terminals to simplify connection. The Ue rated operational voltage is 415 VAC. The dimensions are (W) 36 mm x (H) 60 mm x (D) 75 mm. The pollution degree is 3. The tropicalization is treatment 2 (relative humidity 95% at 55°C). The operational temperature is from -20°C to +55°C. The storage temperature is from -25°C to +80°C. It complies with VDE 0660 part 107, IEC/EN 60947-3 and UL standards.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | rotary switch | |
| Pin number | 2 pole | |
| Shift position | On-Off-On | |
| Number of steps | 3 | |
| switching current | 10 A | |
| Rated voltage | 415 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | AT |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
