RGZE1S35M | Schneider Electric
Relay socket for RXG1, RGZE1S35M
Unit Price (€ / pc.)
3.3796 € *
Standard delivery time from the manufacturer is: 1 Week

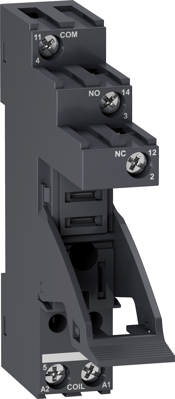

Socket for RXG1, separate contact arrangement, 10 A, 250 V, Screw terminal, bracket
Socket in 15.8 mm width for top hat rail mounting or screw mounting on mounting plate for the interface relays RXG with one changeover contact. The screw terminals are in a separate arrangement between control and load terminals.
The technical features of RGZE1S35M from Schneider Electric at a glance
- Width 16 mm
- Height 78 mm
- Functional addition possible false
- Number of pins 5
- Design of the electrical connection Screw connection
- With removable clamps false
- Mounting type DIN rail 35 mm
- Depth 73 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | RXG1 | |
| Product type | relay socket |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
