LA4DB3B | Schneider Electric
Function module, special diode, 24 VDC for LC1D40/80, LA4DB3B
Unit Price (€ / pc.)
16.1126 € *
Available: 0 pcs.
Leadtime: On Request **

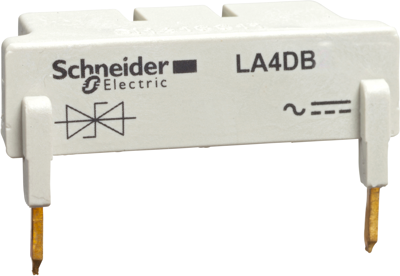

Suppressor module, LA4DB3B, Schneider Electric
TeSys D suppressor module, for LC1D80-D95 (3P), LP1D40-D80 (4P) contactors. To be used with 24V DC control circuit voltage, it provides bidirectional peak limiting diodes protection limiting the transient voltage to 2 Uc max. Mounting on top of contactor, screw fixing and connection on coil terminals. Green Premium compliant (RoHS/REACh).
Technical specifications
| Version | special diode, 24 VDC | |
| Suitable for | LC1D40/80 | |
| Accessory Type | function module |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
