BMXCPS3500H | Schneider Electric

Power supply module X80 - 100..240 V AC - for severe environments, BMXCPS3500H

Order No.: 02P2094
EAN: 3595864029894
MPN:
BMXCPS3500H
Series: Modicon X80

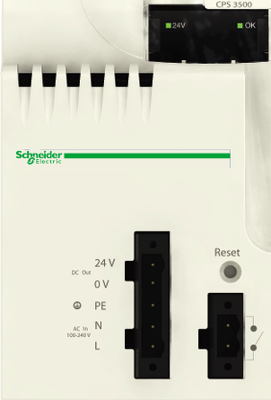

BMXCPS3500H Schneider Electric Power and voltage supply modules
Image may differ
Unit Price (€ / pc.)
768.74 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
768.74 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
768.74 €

Power supply module, BMXCPS3500H, Schneider Electric

This power supply module has a primary voltage of 100V to 240V AC for severe environments. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth, 24V DC input sensor for electrical connection. It is an IP20 rated product.

This product is certified by ATEX, IEC-Ex, CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Technical specifications
Filter Property Value
Input voltage AC 85-264 VAC
Height 132.7 mm
Version power supply module
Depth 156.8 mm
Width 154.49 mm
Logistics
Property Value
Customs tariff number 85044083
Country of origin ID
Compliance
Property Value
RoHS conform Yes
Sustainable Yes
Substance description lead titanate, lead
SVHC free No
Date of RoHS guidelines 3/31/15
