TM3SAC5R | Schneider Electric
SAFETY MODULE FOR PLC TM2xx, 1 FUNCTION, CAT3, SCREW TERMINALS
Unit Price (€ / pc.)
200.9315 € *
Available in 3 Days: 4 pcs. - if ordered today

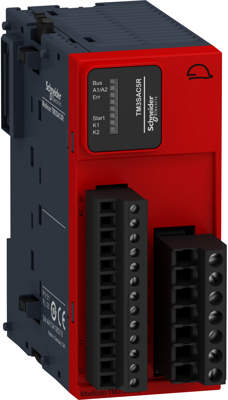

Safety module, TM3SAC5R, Schneider Electric
This TM3 safety expansion module monitors emergency shutdown pushbuttons and limit switches to conform to PLd / Category 3. It meets the requirements of PL d/Category 3 conforming to EN/ISO 13849-1 and SILCL 2 conforming to EN/IEC 62061. It has a module locking latch, 2 TM3 bus connectors designed to provide continuity of the link between connected modules, a symmetrical rail locking clip, display block for the module channels and diagnostics. It has removable terminals for easier and better control wires tightening, thus improving installation reliability.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 1 function safety module | |
| Control Voltage | 24 VDC | |
| Number of outputs | 3 | |
| Connection | screw terminal connection | |
| Assembly | DIN rail | |
| Width | 43.7 mm | |
| Height | 94 mm | |
| Depth | 73 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364190 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
