NSY17992 | Schneider Electric
Fan, 230 V, 320 x 320 x 150 mm, 460 m³/h, Schneider Electric NSY17992
Unit Price (€ / pc.)
627.487 € *
Standard delivery time from the manufacturer is: 1 Week

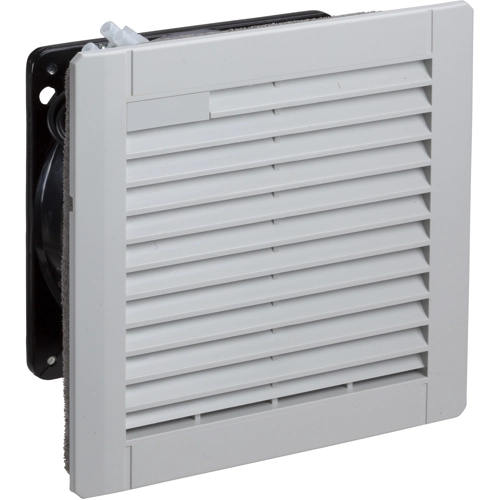

EMC fan, NSY17992, Schneider Electric
ClimaSys CV Ventilator CEM 480 m3/h. External H is 320 x W is 320 x D is 150 mm. EMC fan with standard ventilation filter. Free flow rate at 50 Hz and 230 V 50/60 Hz input voltage. ABS (acrylonitrile butadiene-styrene) for outlet grille, steel for frame of axial motor. Grey RAL 7035. IP 54 Protection. Cut-out dimensions is 292 x 292 mm.
Features
- To effectively protect the equipment against electromagnetic interference
- Ingress protection rating IP54
- The EMC fan is equipped with a steel frame covering the plastic elements
- A beryllium gasket to ensure conductivity between the perimeter of the fan unit and the enclosure
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP54 | |
| Volume flow | 460 m³/h | |
| Rated voltage | 230 V | |
| Width | 320 mm | |
| Height | 320 mm | |
| Depth | 150 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145925 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
