A9L40271 | Schneider Electric

Surge arrester, 800 VDC, A9L40271

Order No.: 01P7965
EAN: 3606480506666
MPN:
A9L40271
Series: Acti 9

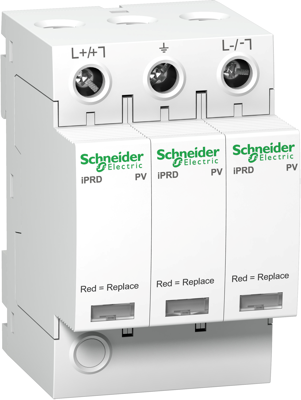

A9L40271 Schneider Electric Overvoltage Protection
Image may differ
Unit Price (€ / pc.)
174.3707 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
174.37 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
174.3707 €

Surge arrester, A9L40271, Schneider Electric

This Acti9 iPRD-DC 40r direct current surge arresters protects 2P photovoltaic installations. It allows quick replacement of damaged cartridges. The Itotal discharge current is 40 kA. The In nominal discharge current is 15 kA. This Type 2 device is recommended to protect against indirect lightning strikes. The surge arresters with r indication have remote transfer of the information Cartridge to be replaced. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The Uc maximum continuous operating voltage is 800VDC. The Up protection level is 3kV in differential mode and in common mode. The Ue rated operational voltage is 800VDC +/- 10%. The product colour is white (RAL9003). The dimensions are (W) 54 mm x (H) 85 mm x (D) 69 mm. The width in 9 mm pitches is 4. The weight is 400 g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product complies with UTE C 61470-51 and EN 50539-11:2013 standards.

Technical specifications
Filter Property Value
Version surge arrester
Voltage 800 VDC
Assembly DIN rail
Logistics
Property Value
Customs tariff number 85354000
Country of origin CN
Compliance
Property Value
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
